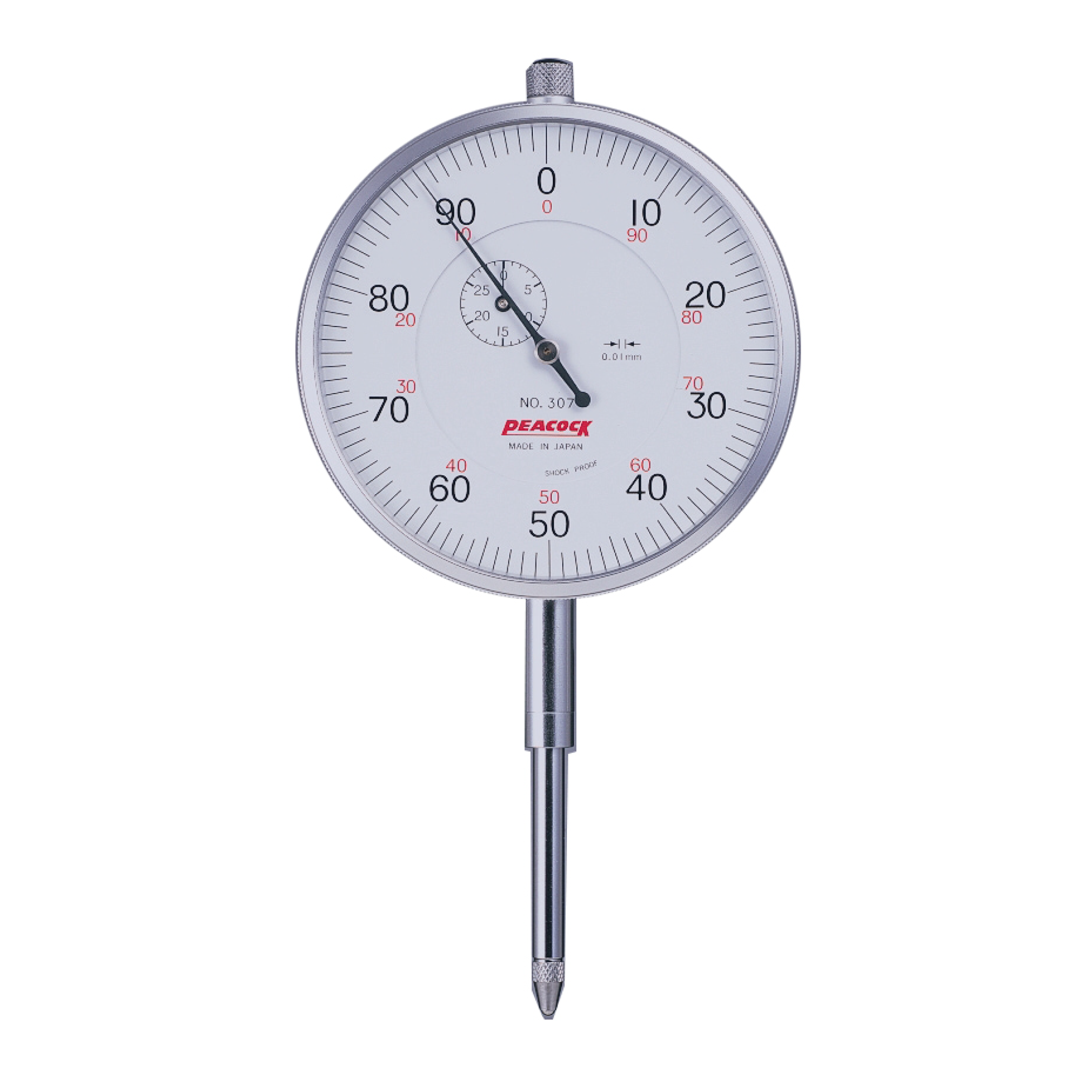

PEACOCK Dial Indicator Lug Back Jeweled Bearing 30mm Range | 0.01mm Graduation

Since 1916, PEACOCK Measuring Instruments is recognised for its accuracy, durability, and reliability, making it a trusted choice for professionals and hobbyists alike.

• The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.

• The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.

• The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are water-proof and dust-proof in construction.

• The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

• Jeweled bearing is installed to our general Dial Gauges.

Technical Data:

Digital/Analog: Analog

Inch-Metric: Metric

Range: 30 mm

Graduation: 0.01 mm

Reading: ±0-50-100

Indication error (MPE) 1/10 revolution: 10 µm

Indication error (MPE) 1/2 revolution: 12 µm

Indication error (MPE) 1 revolution: 15 µm

Indication error (MPE) Whole measuring range: 30 µm

Hysteresis error: 7 µm

Repeatability: 5 µm

Measuring force less than (N): 2.2

Continuous dial: Yes

Dial size: Ø75.5 mm

Model#: 307

MADE IN JAPAN
