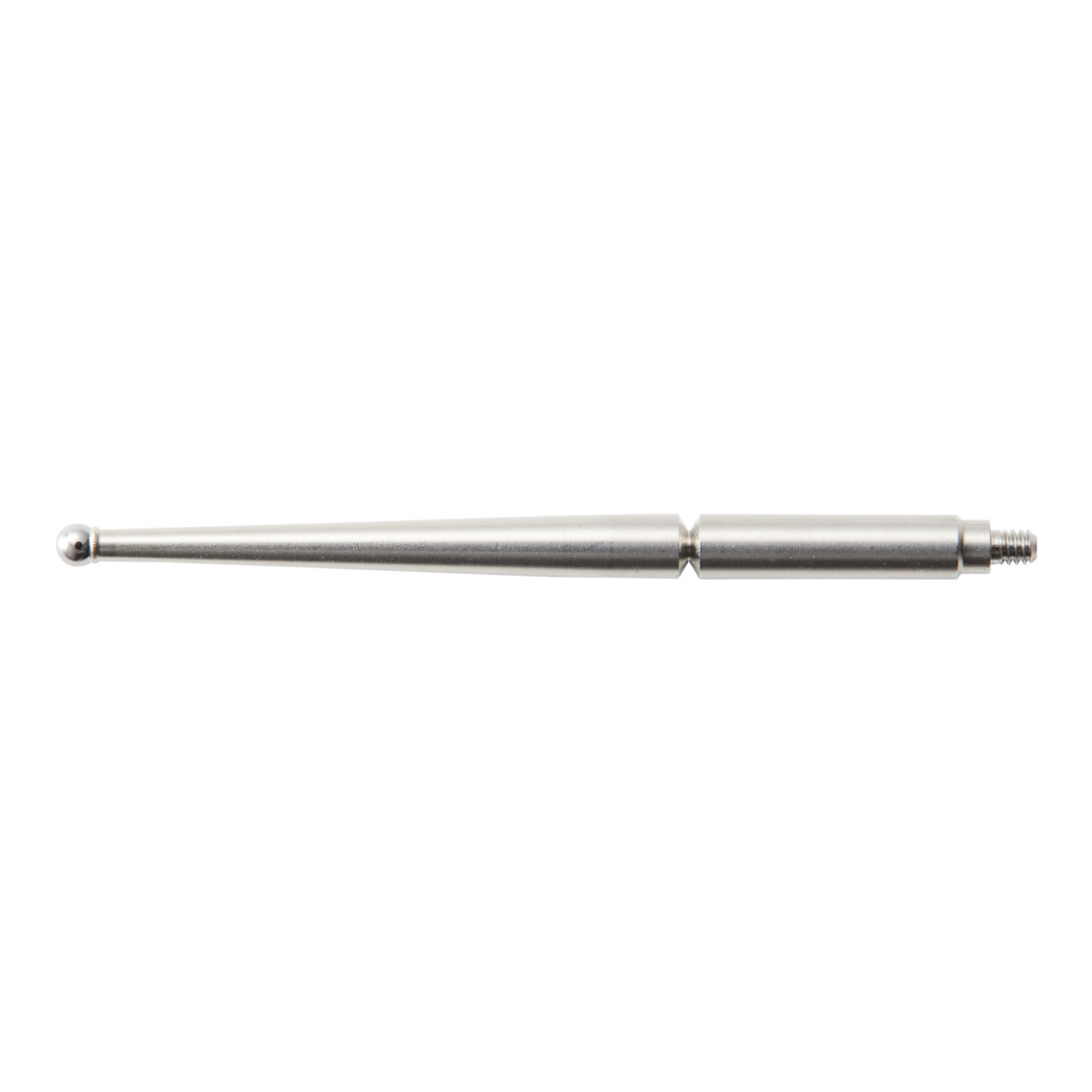

Mitutoyo Stylus Probe Contact Points for Series 513 Metric Test Indicators

Mitutoyo Stylus Probe Contact Points

• For Mitutoyo Series 513 Metric Test Indicators.

Technical Data:

Inch-Metric: Metric

Thread: M 1.7 x 0.35 mm

Tip Ball Material: Carbide or Ruby

øD Contact points/Length options:-
- ø1 mm Carbide Point, L=17.4 mm
- ø1 mm Carbide Point, L=41.0 mm
- ø2 mm Carbide Point, L=17.4 mm
- ø2 mm Carbide Point, L=41.0 mm
- ø2 mm Ruby Point, L=17.4 mm
- ø2 mm Ruby Point, L=41.0 mm

Model #: 103013, 136235, 103006, 136013, 21CZA201, 21CZA211

MADE IN JAPAN
