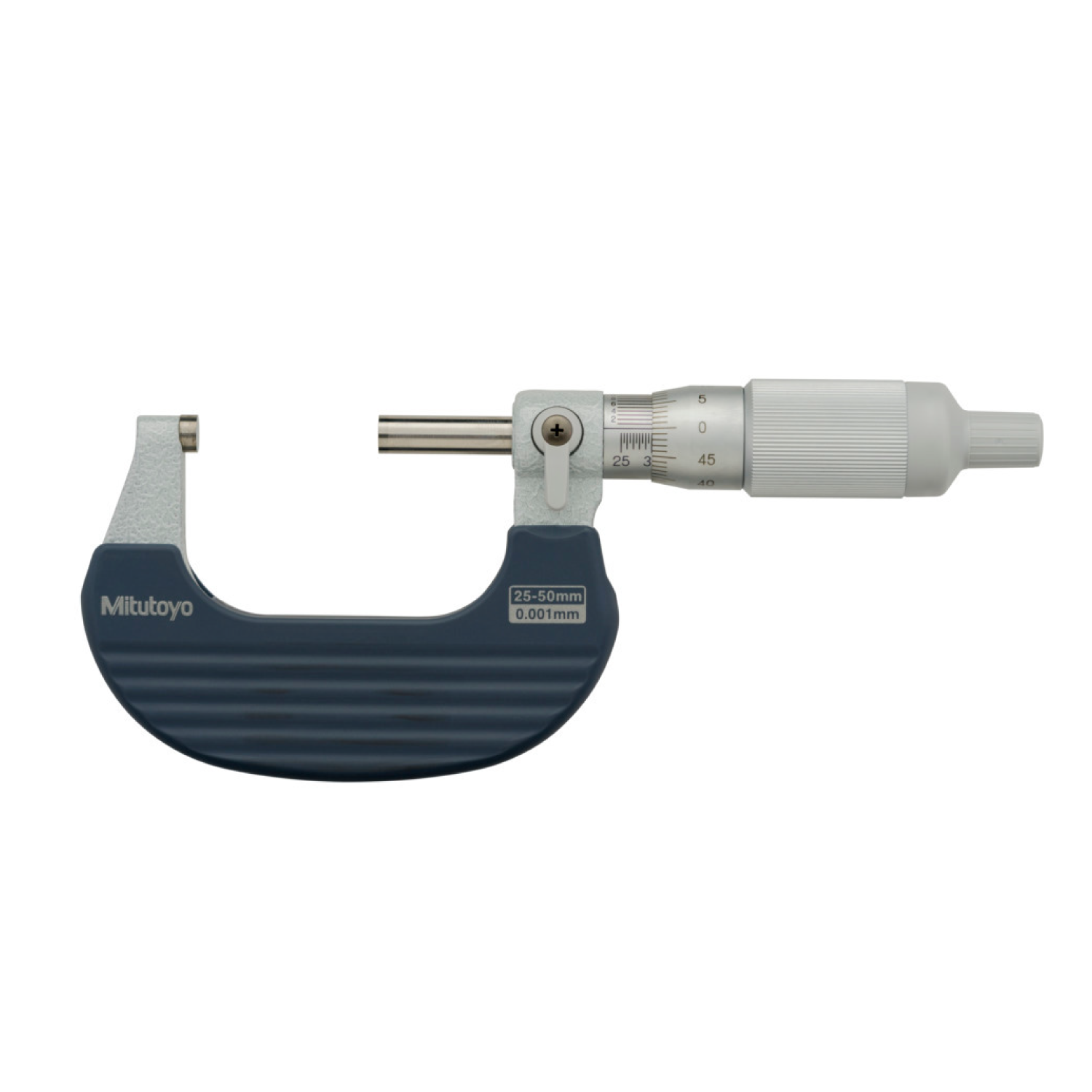

Mitutoyo Outside Micrometer Ratchet Thimble 25-50mm Range | 0.001mm Graduation
SERIES 102 — Ratchet Thimble Outside Micrometer
More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer.
Ratchet function works both from the thimble and the speeder.
Rotating the thimble/ speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece.
Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
The speeder is always available for quick rotation of spindle.
A simple mechanism, which requires neither parts maintenance nor special technique, is employed in the constant-force device.
Heat-insulated frame.
Measuring faces: Carbide.
Technical Data:
Digital/Analog: Analog
Inch-Metric: Metric
Range: 25 - 50 mm
Maximum Permissible Error J MPE: ±2 µm
Flatness: 0.6 µm
Parallelism: 2 µm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5.0 - 10.0 N

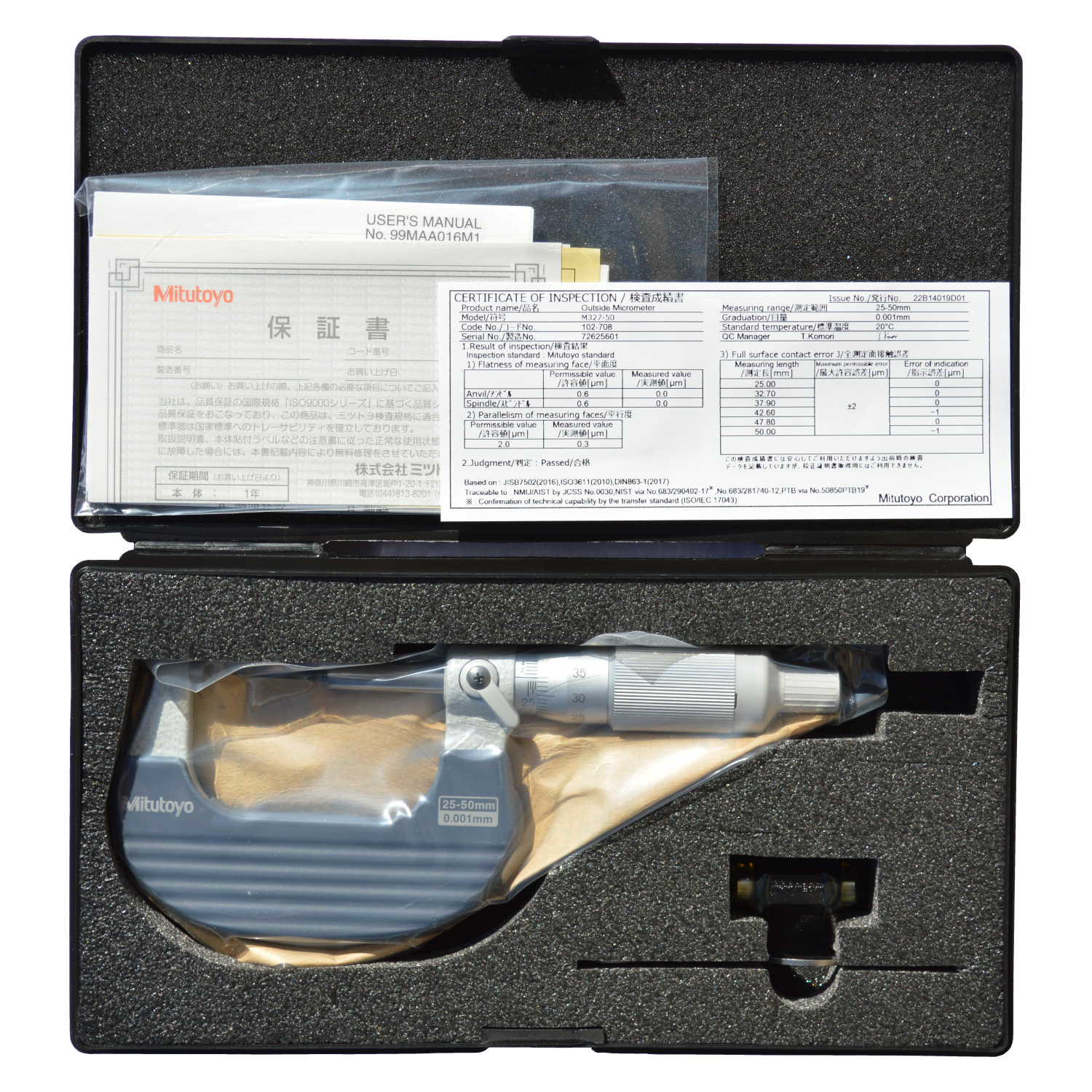

Delivered: Including box, key, setting standard (from 25 mm upward), certificate of inspection
Mass: 270 g
Model #: 102-708 (metric only)
MADE IN JAPAN
