Mitutoyo Digital Depth Micrometer 0-150mm Range | 0.001mm Resolution
Depth Micrometer SERIES 329 — Interchangeable Rod Type
This interchangeable rod type micrometer can be used for wide range measurements. It offers you the following benefits:
∅4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
The ratchet stop provides constant measuring force.
Measuring rod lock.
Technical Data:
Digital/Analog: Digital
Inch-Metric: Metric
Resolution: 0.001 mm
Measurement range: 0 - 150 mm

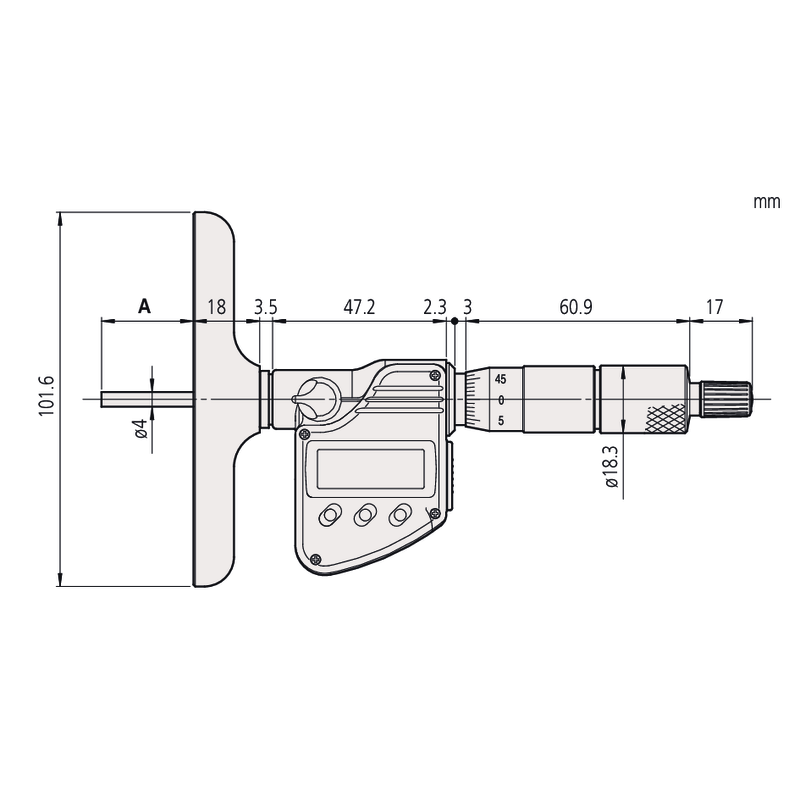

Base (W x T): 101.6 x 16 mm
Spindle feed error (μm): 3
Flatness of reference surface (base) (μm): 2
Flatness of measuring face (rod) (μm): 0.3
Parallelism between reference face and measuring rod face (μm): 7
Zero point error of rods (μm): ±4
Measuring face: Hardened, precision ground, micro-lap finish
Base: Hardened tool steel
Scale: Thimble and sleeve satin chrome finish, ∅18 mm
DATA (output with cable) / HOLD (display value): Yes
ABS / INC (INC ZERO): Yes
Lock function: Yes
Auto Power OFF after 20 min. non use: Yes
2 x PRESET: Yes
Low voltage alarm: Yes
Data output: Yes

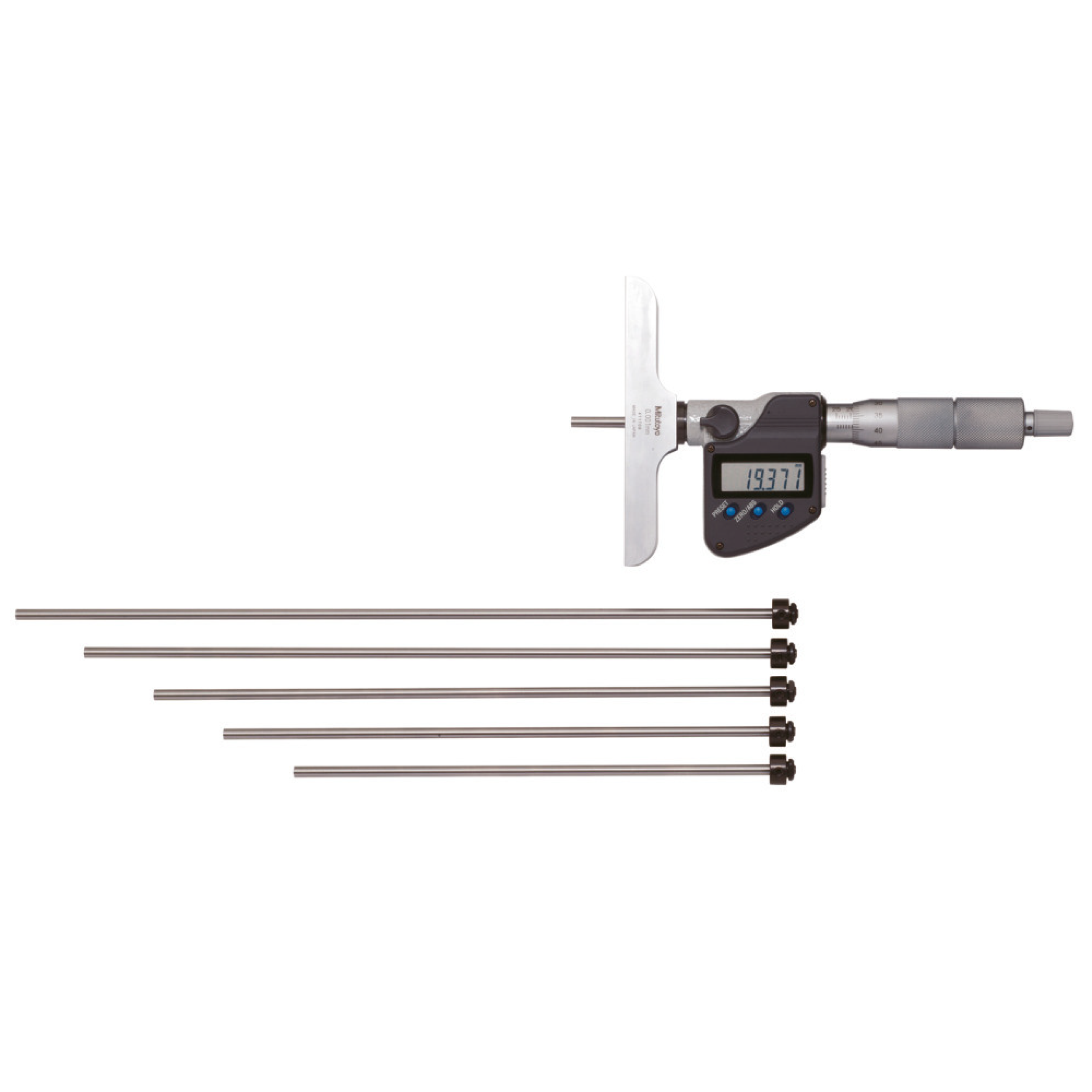

Number of rods: 6
Power supply: SR44
Measuring force: 5-10 N
Battery life: Approx. 2.4 years

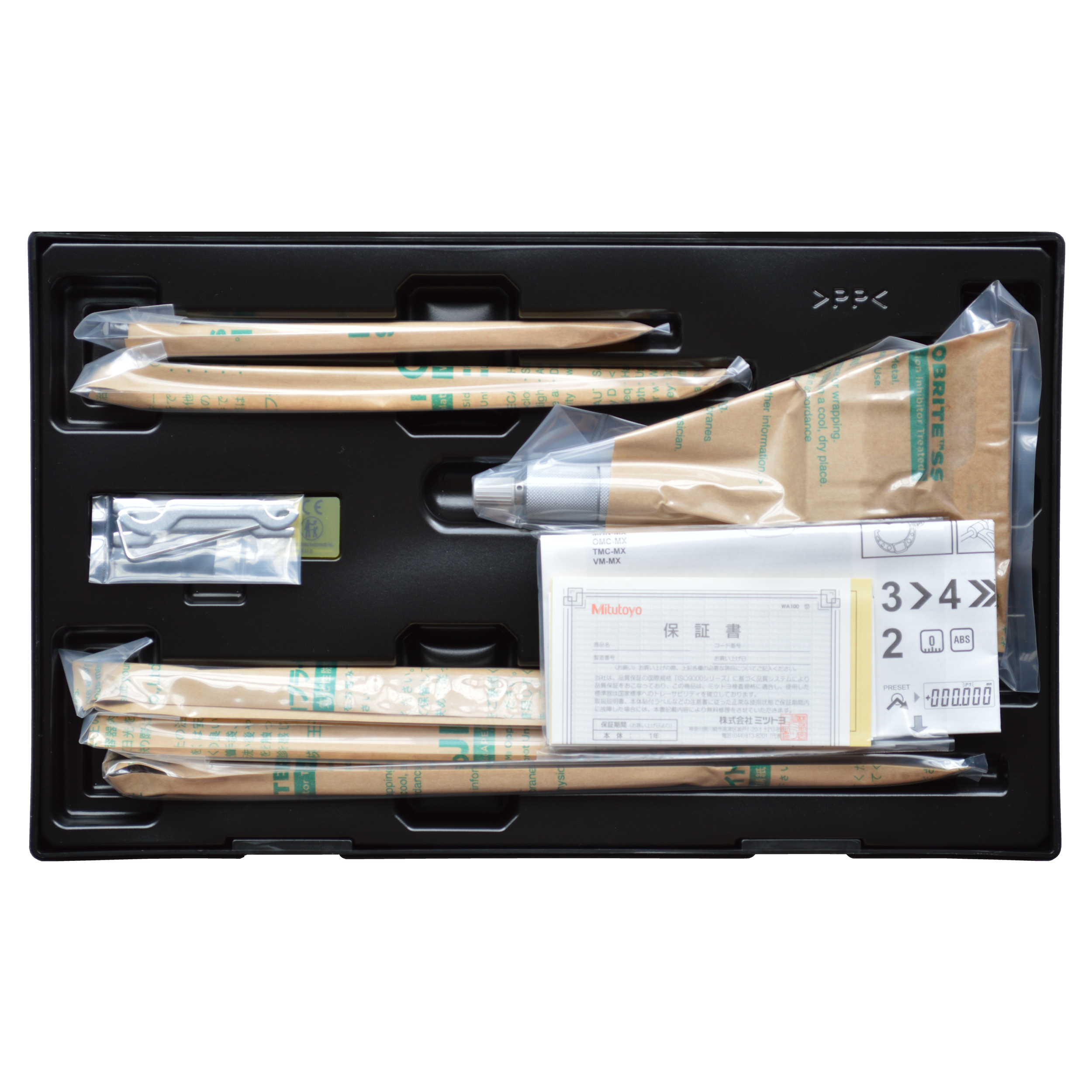

Delivered: Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863, 1 SR44 battery
Mass: 540 g
Measurement System: Metric only
Model #: 329-250-30
MADE IN JAPAN
