iGAGING Dial Internal Bore Gauge Extended Range Set 0.7-6" / 18-150mm Range | 0.01mm Graduation
iGAGING Dial Bore Gauge 0.7-6" / 18-150mm / 0.01mm Deep Engine Hole Cylinder Measurement Gauge
Super Precision Bore Gauge Deep cylinder bore gauging to a depth of 10" affords the user the ability to measure out-of-round conditions and tapers of cylinders without the necessity of removing pistons - critical wear area of the cylinder can be reached with this gauge. Super precision up to 0.01mm at range from 0.7"(18mm) to 6"(150mm).
Measure these ranges with this set:
0.7 - 1.5"
1.4 - 2"
2 - 6"
Set Includes:

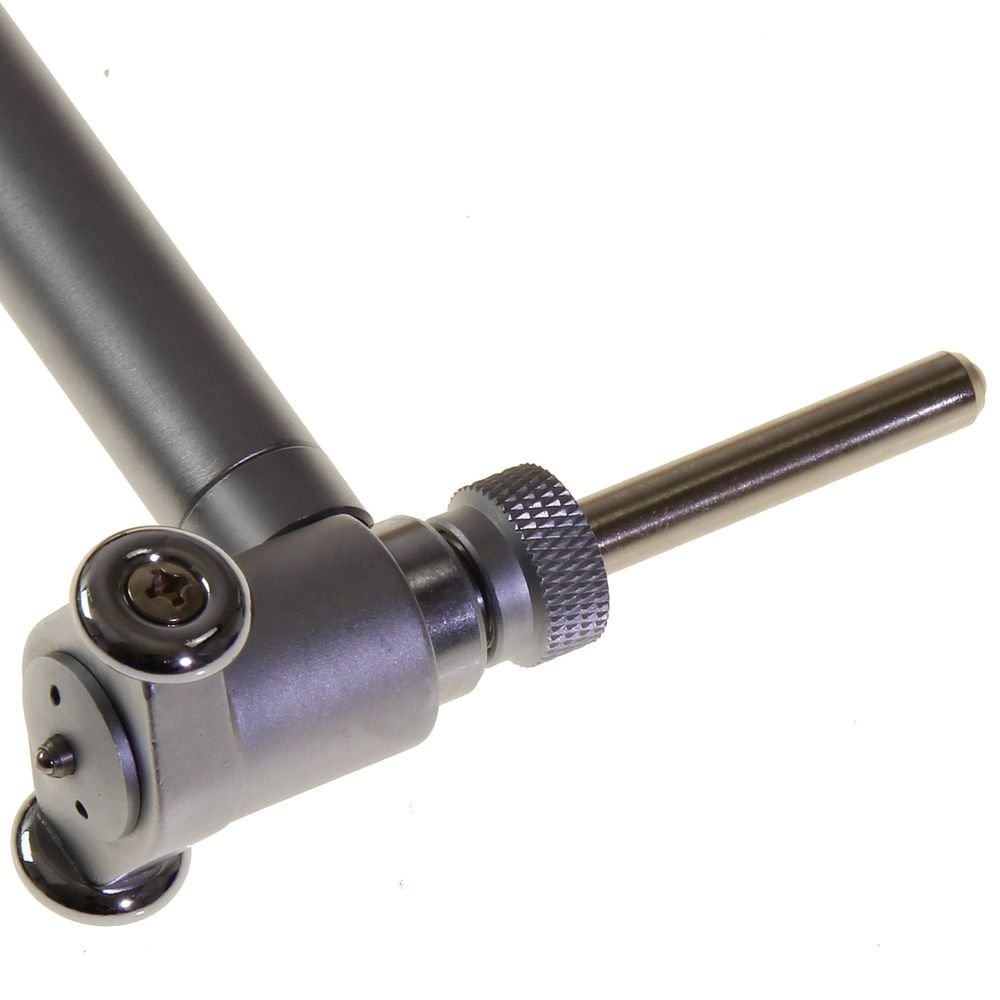

3 interchangeable measuring heads: 0.7" - 1.5", 1.4" - 2" & 2" - 6"
3 sets of anvils with carbide points: (0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.3, 1.4"), (1.4, 1.6, 1.8, 2"), (2.0, 2.2, 2.4, 2.8, 3.0, 3.2, 3.4, 3.6, 3.8, 4")
2" extender
3 spacers/washers: 0.02, 0.05, 0.1"
Supplied in protective case
Specifications:
Measures bore to 10" deep
Bore gauge measuring range: 0.7 - 6" / 18 - 150mm
Bore gauge total error: 0.0006"
Bore gauge self-centering error: 0.00025"

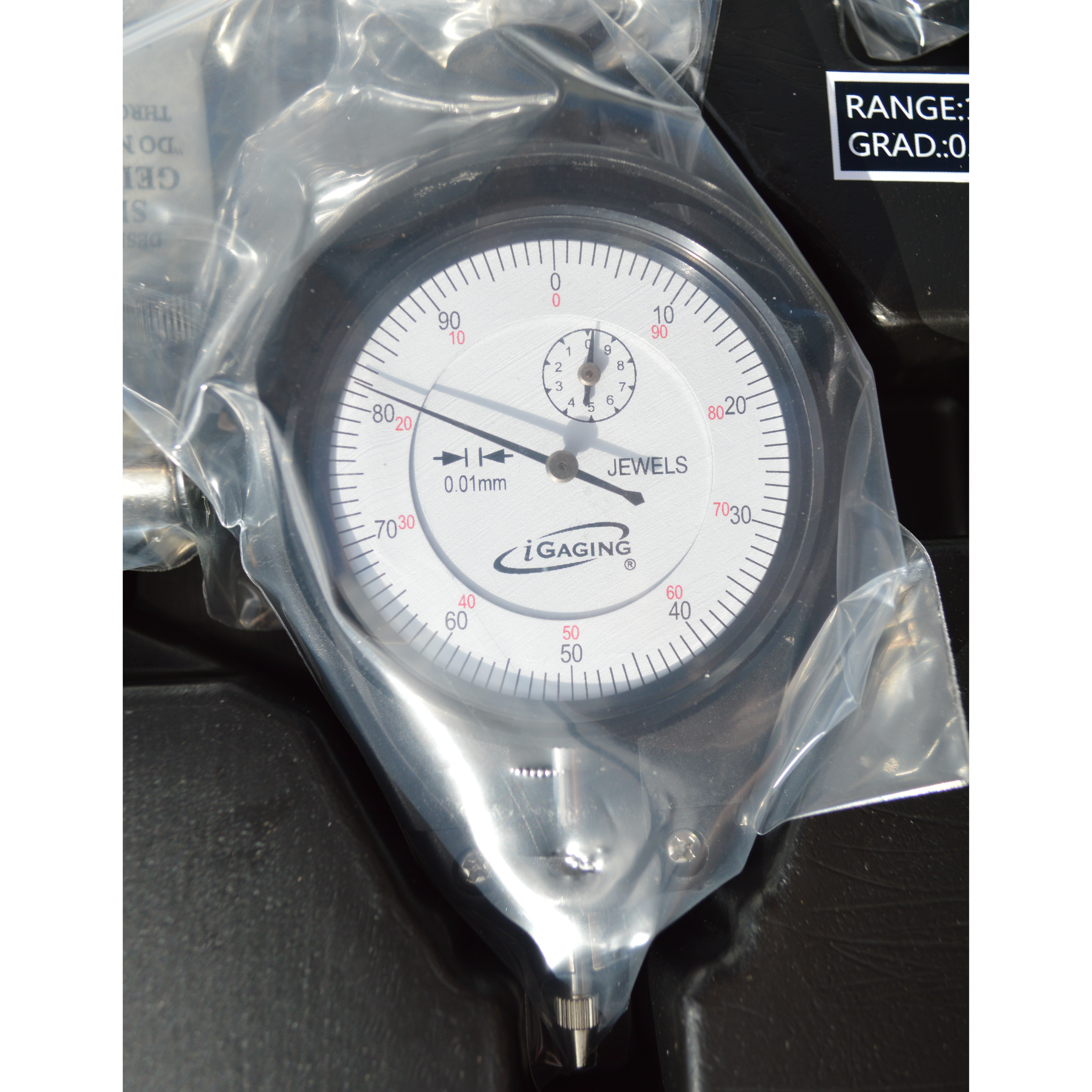

Dial Indicator:
Range: 0 - 10 mm
Range per rev: 1 mm
Graduation: 0.01 mm
Reading: 0-90
Accuracy: 0.01 mm
Continuous dial: Yes
Carbide tip on measuring plunger
Dial indicator contains jeweled bearings
Item No.: 34-6868
